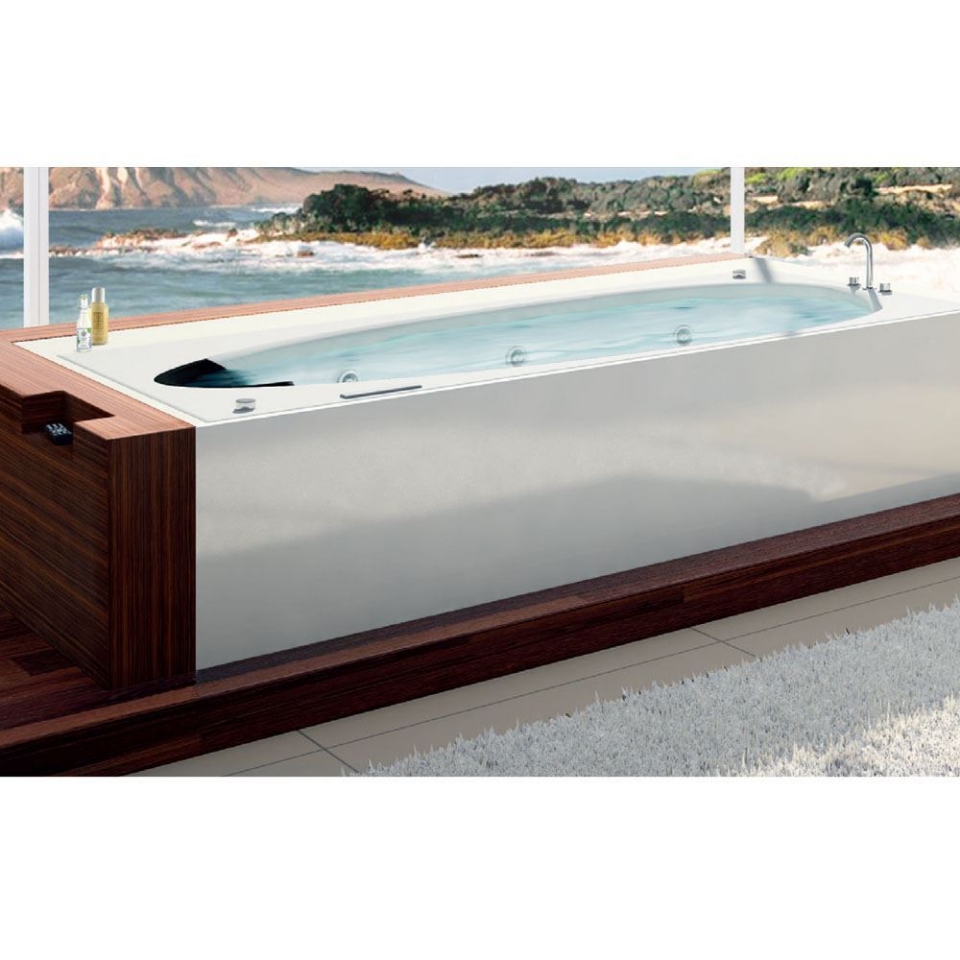

Vignette Prime Combi System With Filtration System (Trigiene)

  • Range :
    Whirlpool Bathtubs
  • Code :
    JWP-WHT-VGNT190FLTCX
  • Description :

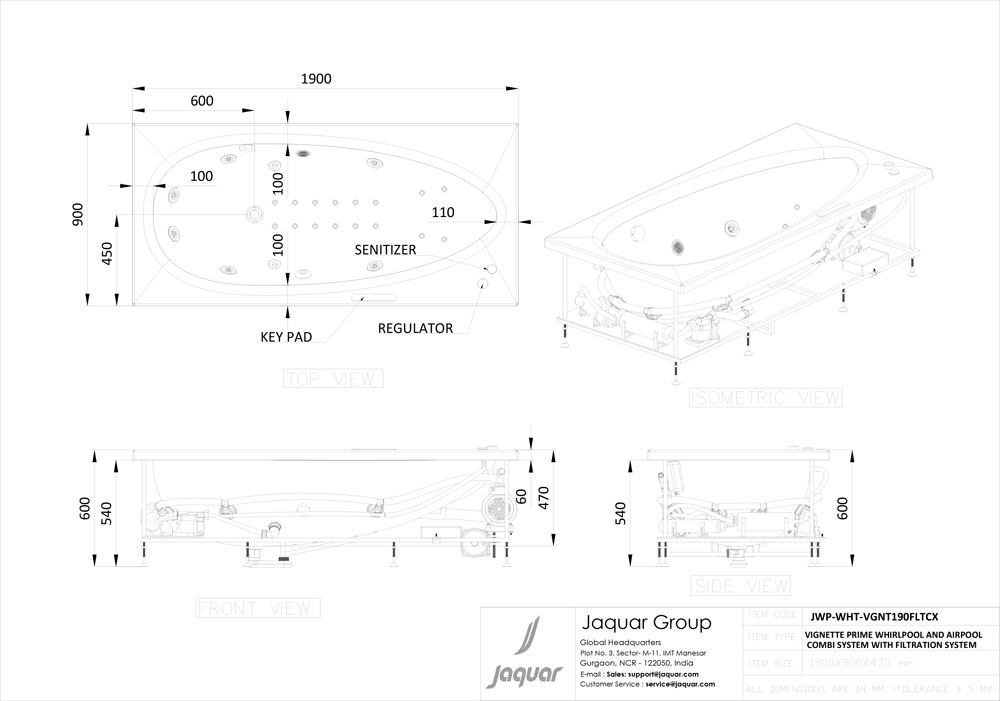

    Vignette Prime 190x90x47cm Whirlpool And Airpool Combi System With Filtration System (Trigiene)
Vignette Prime Combi System With Filtration System (Trigiene)

Hello! I'm your Jaquar Product Assistant. I'm here to answer any questions about this product.

Disclaimer:
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  • read more...

Specifications :

  • PMMA Sheet
    PMMA Sheet
  • PU Green Reinforcement
    PU Green Reinforcement
  • SS Frame
    SS Frame
  • Level Sensor
    Level Sensor
  • Safety Vacuum Breaker
    Safety Vacuum Breaker
  • Keypad Control
    Keypad Control
  • Overflow with drain and filler
    Overflow with drain & filler
  • Water Pump 1.4 HP
    Water Pump 1.4 HP
  • Slim water jets 8
    Slim water jets 8
  • Back Jets-4
    Back Jets-4
  • 0.9 HP Air Blower
    0.9 HP Air Blower
  • Air Jets 12
    Air Jets 12
  • Air Regulator
    Air Regulator
  • Disinfection
    Disinfection
  • Headrests
    Headrests
  • Chromotherapy
    Chromotherapy
  • Ozone
    Ozone and UV Filtration
  • 3 Tier Testing
    3 Tier Testing
  • Carbon Filter
    Carbon Filter
  • Circulation Pump 120watt
    Circulation Pump 120watt
  • Heater
    Heater 1.5KW
  • Mesh Filter
    Mesh Filter

JWA-WHT-VGNTPFPX (Front Panel)

JWA-WHT-VGNTPSPX (Side Panel)

*Accessories Excluded
