Integra-X Split Heat Pump 400 LTR

  • Range :
    Heat Pump
  • Code :
  • Description :
    For use in multiple bathrooms with shower panels & bathtubs
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  •

Product Specifications:-

DetailsIntegra-x Split Heat Pump
Tank Volume (L)400
Rated Heating Capacity (kW)8.7
Rated Input Power (kW)2.15
Working Ambient Temperature (℃)-7~43
Max Outlet Temperature (℃)60/75
Required Power Supply (V/Ph/Hz)220/1/50
Heating Element (kW)4.0 kW
Refrigerant TypeR410a

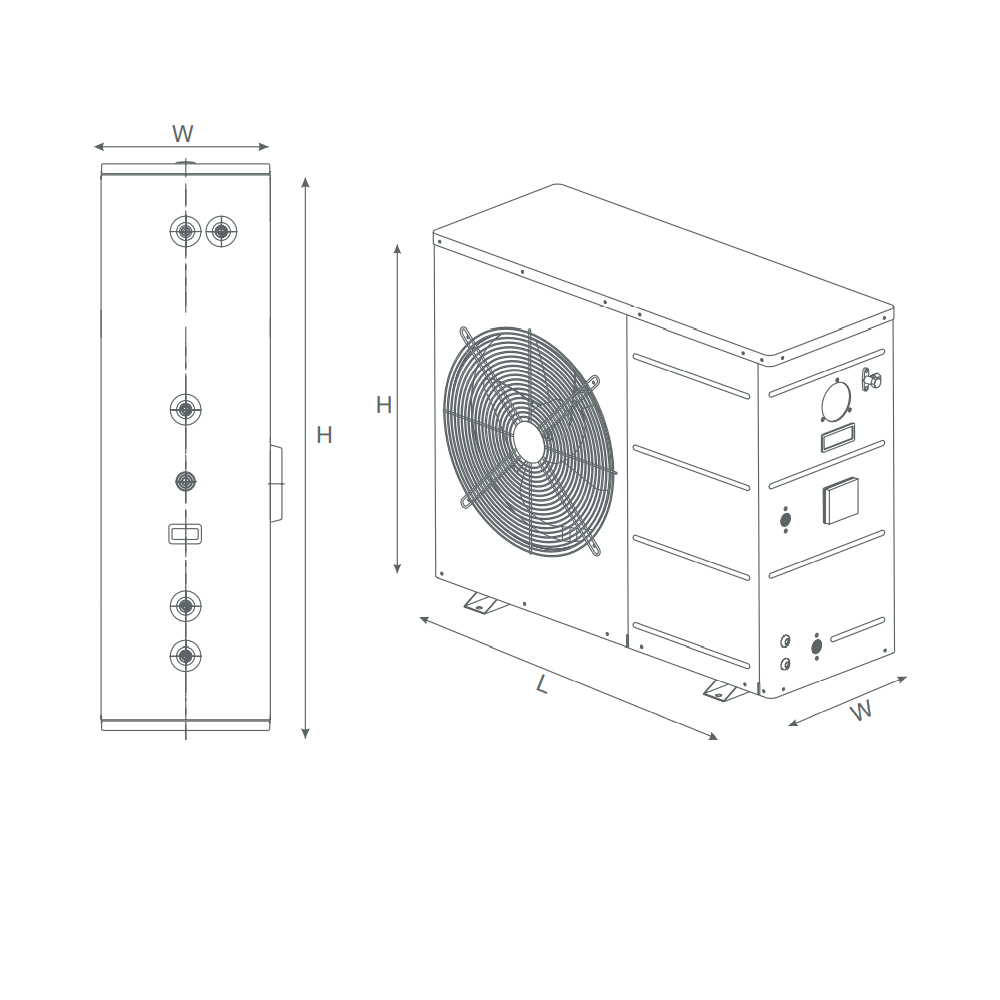

Product Dimension (mm)Unit- 420X800X986
Tank- 685 X1740
Weight - Net/ Gross (Kg)Unit - 80/87
Tank - 99/108
Warranty4 Years on Tank
2 Years on Heating Element, Compressor with Sealed System
1  Year on other  components
