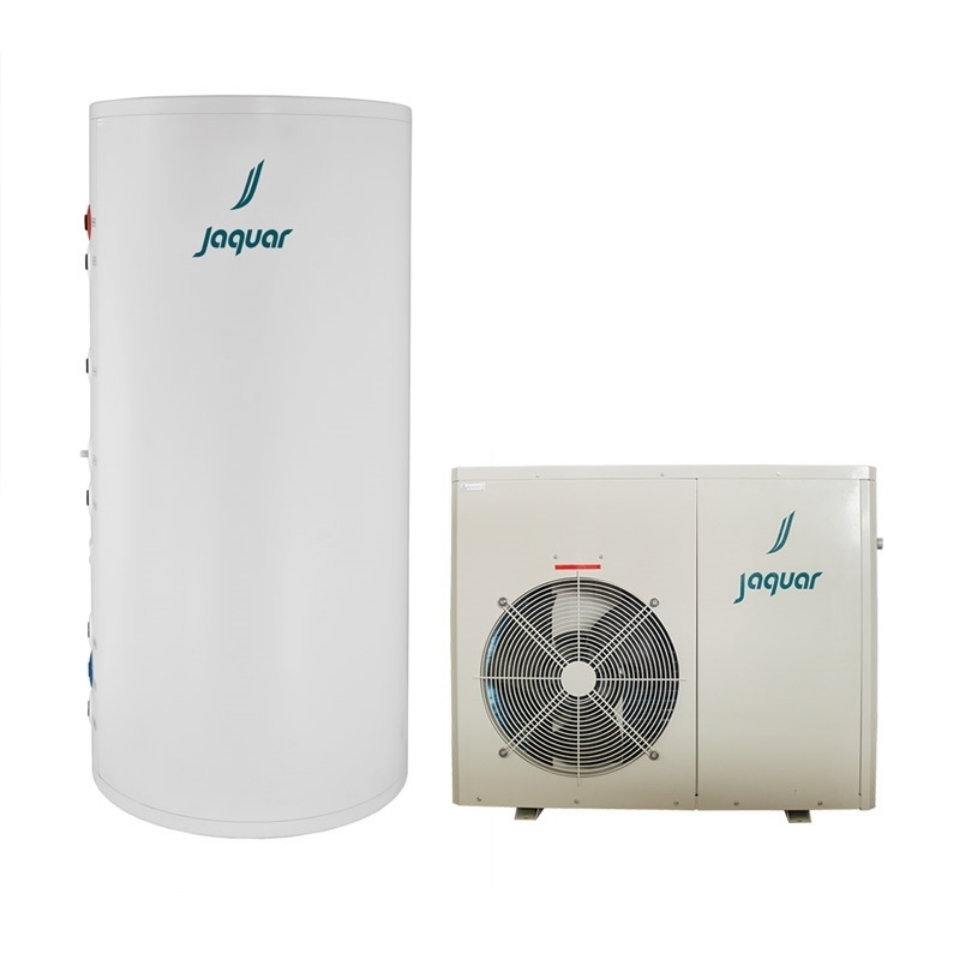

Integra Split Heat Pump 400 LTR

  • Range :
    Heat Pump
  • Code :
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  •
DetailsIntegra Split Heat Pump
Tank Volume (L)400
Rated Heating Capacity (kW)5.2
Rated Input Power (kW)1.3
Working Ambient Temperature (℃)-7~43
Max Outlet Temperature (℃)55/75
Required Power Supply (V/Ph/Hz)220/1/50
Heating Element (kW)4.0 kW
Refrigerant TypeR410a
Working Pressure (MPa)1.0
Product Dimension (mm)Unit- 970 X 390 X780
Tank- ϕ700 X 1480
Weight - Net/ Gross (Kg)Unit - 48/65
Tank - 105/125
Warranty4 Years on Tank
2 Years on Heating Element, Compressor with Sealed System
1 Year on other components
