ERICA MANUAL : VOLUME 10 LTR

  • Range :
    Electric
  • Code :
    ERM-WHT-V010
  • Description :
    The perfect storage water heater for small families
Disclaimer:
  • Jaquar reserves the right at its sole discretion, to change/modify/alter any product specification at any time without notice, where improvement can be effected in design, development and dimensions.
  • Although the information shown in this catalogue is updated to the extent possible but the same may vary. It is advisable to consult our local representative or check in a period manner for latest technical and other updates.
  • The prices are subject to change without notice and those ruling at the time of supply will be charged.
  • Colours & sizes of product images shown in the Website may vary in reality
  • read more...
Rated Wattage2000
Volume(L)10
High Pressure Rating8 Bar
Outer body materialABS
Inner Contaner Thickness2mm
Average Enamel layer thickness0.35mm
Multi-function Safety ValveYES
Manual LeverYES
Heating element typeIncoloy with Glass coated heating element
Warranty7 Years on tank, 4 Years on Element and 2 years for other components
ELCB FacilityYes
Light/Temperature IndicatorsPower light
Voltage230V~ 50Hz
Temperature Range25-75ºC
Voltage230V~ 50Hz
ShapeSquarish
No of elements1

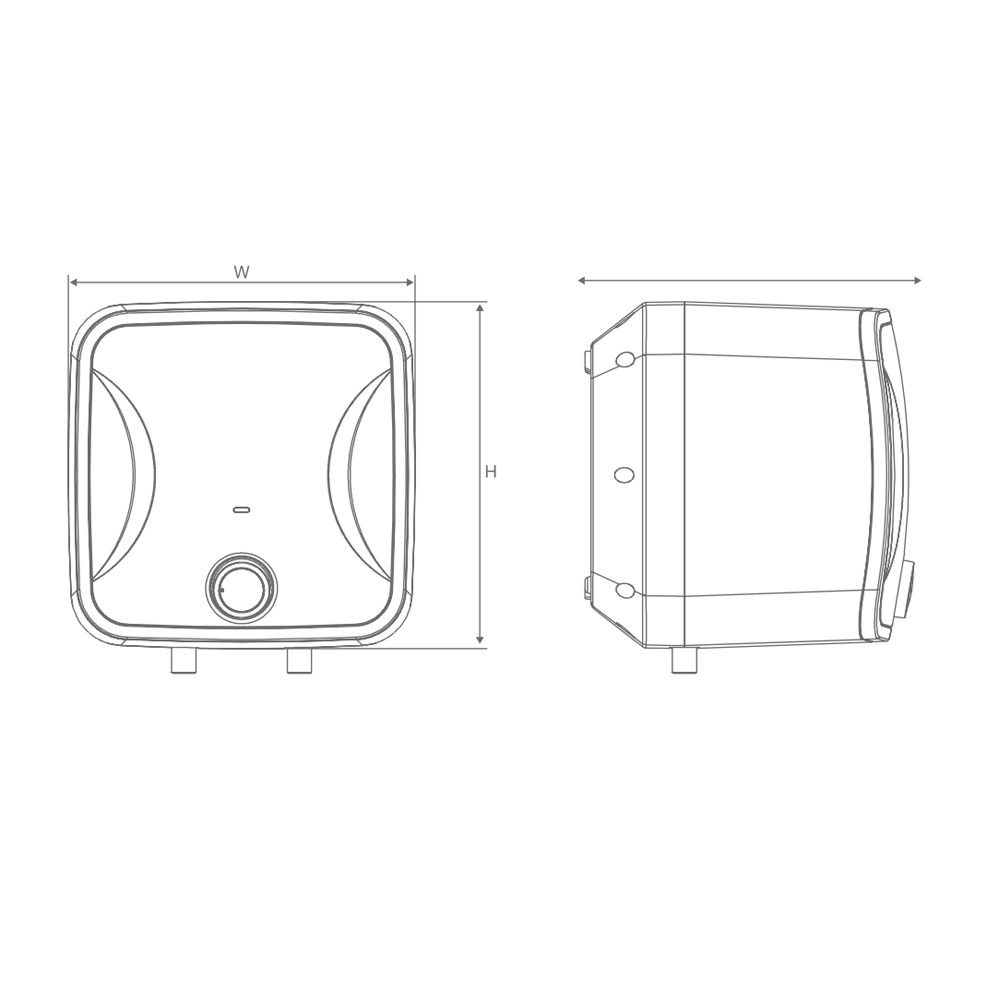

Product Dimensions (in mm)340x340x328
