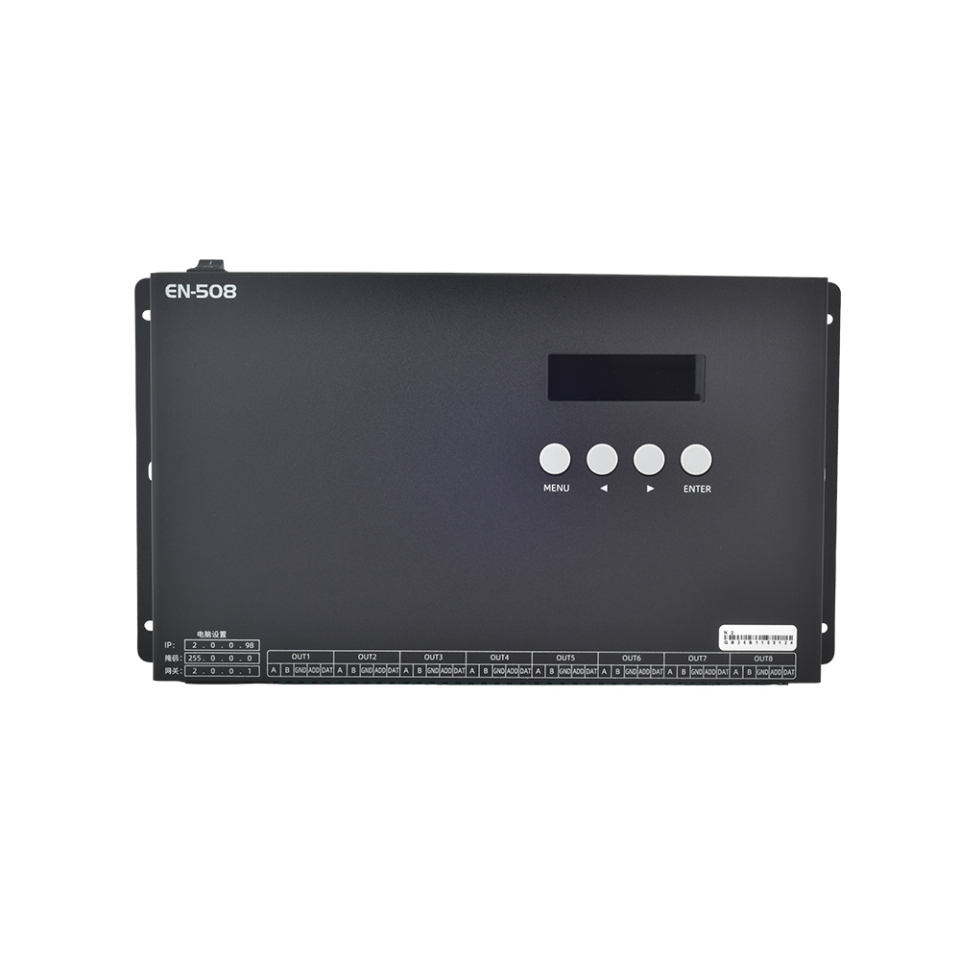

Sub LED Controller

  • प्रोडक्ट रेंज :
    Projectors
  • कोड :
    JQA-BLK-DYNCSUB8CEN508
  • विवरण :
    SUB LED Controller is an LED controller with unique data processing method for the display on complex architectural building facade.
यहाँ दर्शाए गए फ़िनिश केवल सांकेतिक हैं और वास्तविक उत्पाद पर इससे भिन्न हो सकते हैं।
Technical Specifications:
  • Operating temperature: -15°C ~ +60°C
  • Humidity: ≤50% RH
  • Power consumption :≤5W
  • Environment: IP20
  • Cascade signal : Optocoupler
  • Master controller signal: Ethernet protocol
  • Network interface : RJ45 Ethernet interface
  • Output signal: TTL & RS-485 × 8 Ports
  • Control capacity: Up to 154 Sub-controllers or 4,00,000 channels
  • Transmission distance: Use UTP (unshielded twisted pair) cable, distance between the controllers can be
  • Weight : 1500 gm
  • Dimension : 285mm (L) × 156mm (W) × 44mm (H)
