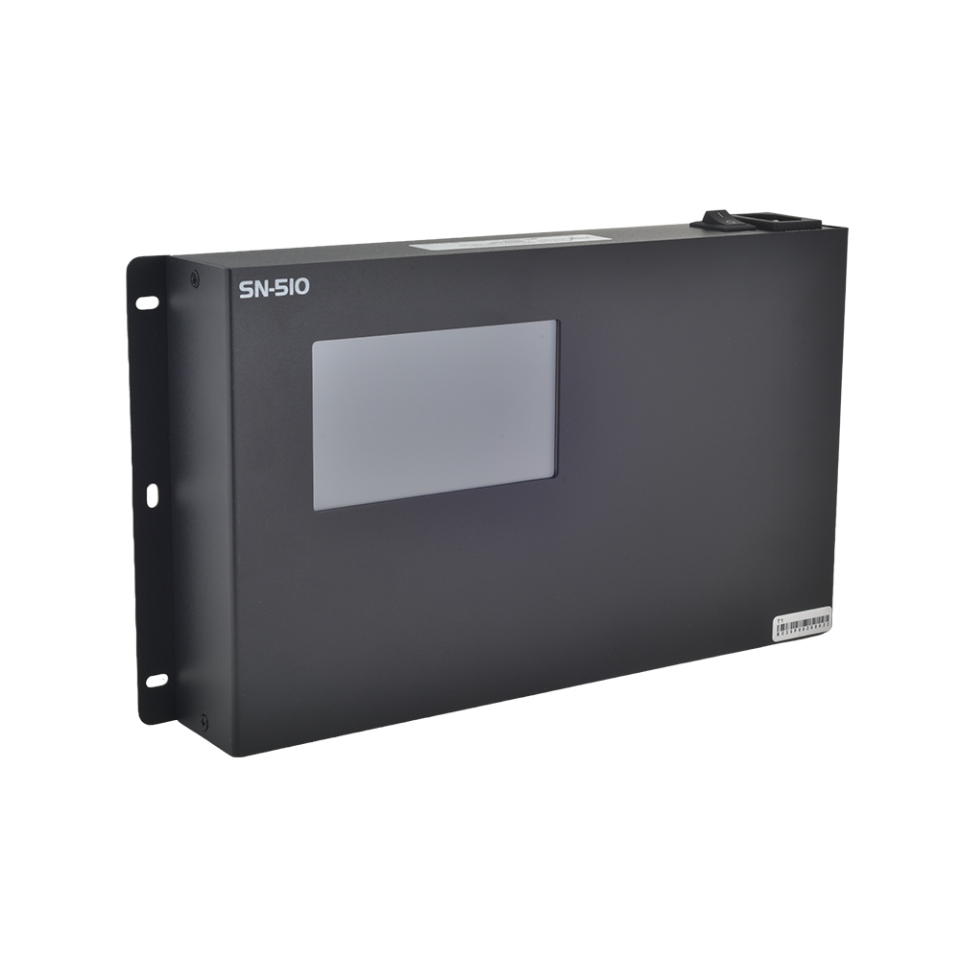

Main LED Controller

  • प्रोडक्ट रेंज :
    Projectors
  • कोड :
    JQA-BLK-DYNCNMAINSN510
  • विवरण :
    Jaquar Master LED Controller is an intelligent Cloud based master processor which Support PC and SD card integrated control; work with sub controllers, can switch freely between PC control and SD card control automatically, when needed
यहाँ दर्शाए गए फ़िनिश केवल सांकेतिक हैं और वास्तविक उत्पाद पर इससे भिन्न हो सकते हैं।
Technical Specifications:
  • Input voltage:100V–240V AC @ 50Hz
  • Operating temperature :-15°C ~ +60°C
  • Humidity : ≤50% RH
  • Power consumption : <10W
  • Environment: IP20
  • Master cascade signal: Optocoupler
  • Sub controller signal : Ethernet protocol
  • Network interface : RJ45 Ethernet interface
  • Control capacity : Up to 154 Sub-controllers or 4,00,000 channels
  • Transmission distance: Use UTP (unshielded twisted pair) cable, distance between controllers can be 100m
  • Weight :1300 gm
  • Memory : SD card up to 16GB
  • Dimension : 285mm (L) × 156mm (W) × 44mm (H)
